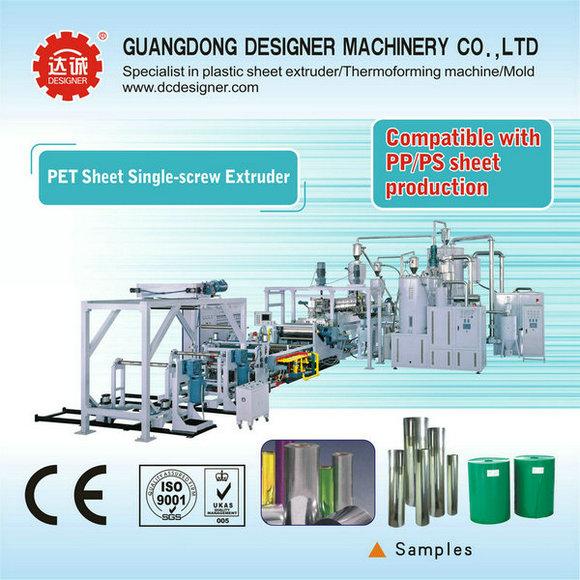

PET/PLA sheet extrusion line3 layer by co-extrusion with screw dia105/65mm and max output PET-400Kgs/h WJP105/65-1000 .
Detailed Product Description
Processed material: PET/PLA, recycled.
Max Output: PET/PLA 400Kgs/h
Power consumption:250Kws/h appx
CE quality standard.
WJP105/65-1000 parameters:
|
Processed material |
Screw Size |
Sheet Width |
Sheet thickness |
Thickness Variation |
Max Output |
Power Consumption |
|
PET(APET,PETG,
RPET)
|
Φ105x33
Φ65x32,seperate type
|
≤700mm,bigger at request |
0.12-0.16mm |
±0.01mm |
PET:400Kgs/h |
250Kws/h appx |
1:This machine use co-extrusion technology to produce max 3 layer sheets like APET/PET,PETG/APET/PETG, APET/RPET/APET structure.
2:Famous brand pre-drying and crystallization system ensures material dried and crystallized to requested grade before feeding.
3:Famous brand standard A/C motor with AB speed inverter offers wide range smooth driving power.
4:Specially designed high efficiency single screw nitrified with hardness ≥860,perfectly suits for PET/- material and enables highest max output with least power consumption.It is compatible with PP,PS sheets production as well if need.
5:Casting Al heater with water cooling controlled automatically by PID controlling system offers high precision heating to barrels.
6:Hydraulic driven double position screen change enables easy mesh changing during production without stopping.
7:Gear pump with 2 sets of pressures sensors loop controlled by PLC guarantees very stable melted flow pressure for high quality sheets production request.
8:Three layer adapter enables t produce max 3 layer sheets likeABA,BAB with good thickness uniformity and each layer's proportion is adjustable as requested
9:Cloth hanger type structure T-Die with screw pull for thickness adjustment and width adjustable.
10:Horizontal type calendering unit consists of 3 mirror rollers with surface roughness ≤0.025μm and centricity ≤0.005mm,adopted Japanese famous brand bearing,which all guarantee sheet thickness variation ±0.01mm.Each roller is independently driven by high quality A/C motor with AB speed inverter.
11:PID automatically temperature controlling system guarantees the surface temperature variation of rollers ±1°C which helps much for good quality sheets' production.
12:Long natural cooling system with sheet trimmed to requested width allows sheets enough time to cool down before taking off and winding.
13:Taking off unit with scrap winding is driven by torque motor.
14:Silicon oil coating and drying before winding for good thermoforming request.
15:Multi-position winding unit allows max Diameter 800mm roll winding(Automatical winding unit for option)
16:Whole machine is controlled by PLC.Parameters are easy to be setted on touch screen.
17:Whole machine is produced according to CE standards.Quality is controlled under ISO9001:2000 system
